Crude Oil Content - Sulfurs

Sour Crude - Crude oil containing free sulfur, hydrogen sulfide (H2S), or other sulfur-containing compounds in amounts greater than 1% is considered sour crude (SPE definition). As is the case with sour gas, the sulfurs must be removed from the crude oil before the oil can be refined and the refiner pays less for oil that contains sulfur. Sour crude is usually processed into heavy oil such as diesel and fuel oil rather than gasoline to reduce processing costs.

Sweet Crude - Oil that contains little or no sulfur is called sweet crude.

Crude Oil Content - Other Attributes

All crudes contain both paraffinic and naphthenic components but are differentiated based on the level of those components.

Parrafinic -Crude oil containing a relatively high percentage (by volume) of linear and branched paraffins. Most conventional engine lubricating oils today are made from paraffinic crude oil. As the name suggests, paraffinic crude contains wax and generally have a higher API gravity, e.g., they are lighter crudes. Many people believe the term paraffinic to be synonymous with wax. In lubricating oils, the wax is removed in a refining process not surprisingly called de-waxing.

Napthenic (Asphaltic) Crude - Naphthenic crude contain relatively little wax. Naphthenic crude oils contain mainly (by volume) napthenes and other aromatic hydrocarbons. They generally have a lower API gravity, e.g., they are the heavier crudes. They also contain other materials including metals such as nickel, iron, vanadium, and arsenic.

  • Oil is a hydrocarbon derived from organic material typically from seas and lakes buried under great pressure and heat.
  • Oil has three main properties: density, viscosity, and solubility.
  • Oil falls into two categories:

  1. Conventional oil starts at zero, rises rapidly to a peak or managed plateau, then it declines exponentially to exhaustion. Conventional oil is cheap, easy, and fast.
  2. Non-conventional (heavy) oil rises slowly and has a long plateau of production until exhaustion. Non-conventional is expensive, difficult, and slow.

  • Crude oil is classified as light, medium, or heavy, according to its measured API gravity.
    • Light Crude has an API gravity higher than 31.1 °API.
    • Medium Crude has an API gravity between 22.3 °API and 31.1 °API.
    • Heavy Crude has an API gravity below 22.3 °API.

API Gravity is a measure of how heavy or how light a petroleum liquid is compared to water. If its API gravity is greater than 10, it is lighter and floats on water; if less than 10, it is heavier and sinks. Most values fall between 10 and 70 API gravity degrees.

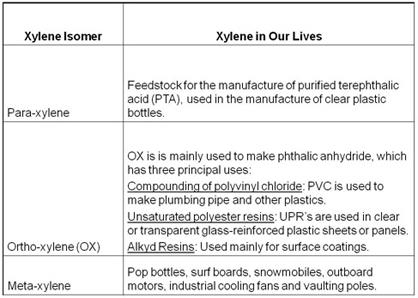

  • Xylene - The term xylene refers to a group of 3 benzene derivatives; orthoxylene, metaxylene, and paraxylene. Xylene uses:

Crude Oil and Petrochemicals

The two main classes of petrochemical raw materials coming out of refineries are olefins (including ethylene and propylene) and aromatics (including benzene and xylene isomers), both of which are produced in very large quantities.

Olefins - Produced mainly in the steam cracking and catalytic reforming processes. Ethylene and its derivatives are described in the natural gas basics page.

The main use of propylene is as a monomer, mostly for the production of polypropylene.

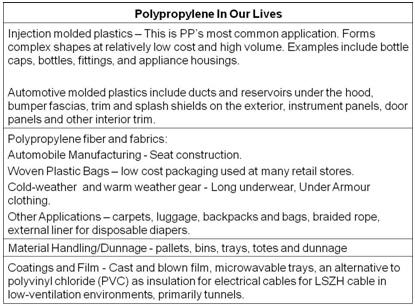

  • Polypropylene (PP) - A plastics raw material that takes the form of granules or powder that is shipped in hopper cars or palletized bins. It has properties similar to polyethylene (the plastic compound that comes from ethylene) but has a much higher melting temperature and is much stiffer. Propylene, hydrogen, and ethylene are the feed-stocks for PP. Consumer products made from polypropylene are many:

​​There are five primary types of crude oil:

  1. West Texas Intermediate (WTI) Oil, aka Texas Sweet Light, is a type of crude oil used as a benchmark in oil pricing and the underlying commodity of New York Mercantile Exchange's oil futures contracts. WTI and Brent Crude are usually referenced in Western news reports about oil prices. WTI is lighter than Brent Crude. Its properties & production site make it ideal to be refined in the US. Typical price difference per barrel is about $1 more than Brent, and $2more than OPEC Basket.
  2. Light Crude is crude oil with a low wax content.
  3. Sour Crude has a hydrogen sulfide level greater than 1%. It also contains carbon dioxide. It is usually processed into heavy oil such as diesel instead of gasoline to reduce processing costs. Venezuela is the world’s major producer.
  4. Sweet Crude contains less than 0.5% sulfur, and contains trace amounts of hydrogen sulfide and carbon dioxide. It is commonly used for processing into gasoline.
  5. Brent Crude consists of Brent Crude, Brent Sweet Light Crude, Oseberg, and Forties. Brent Crude is sourced from the North Sea. The name 'Brent' comes from the formation layers - Broom, Rannoch, Etieve, Ness and Tarbat. Oil production from Europe, Africa and the Middle East tends to be priced relative to this oil. Brent is ideal for production of gasoline and is typically refined in Northwest Europe. Typical price difference per barrel is about $1 less than WTI and $1 more than OPEC Basket. Brent Crude has an API gravity of around 38.



 Exploration & production of oil and gas

Aromatics - Aromatic hydrocarbons are mainly produced by catalytic reforming or similar processes. Benzene and one of its derivatives, xylene are the main aromatics produced from the refining process.

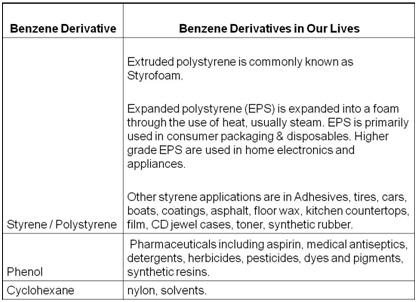

  • Benzene - Mainly used as an additive in gasoline (~1% by volume) and as an intermediate to make other chemicals, it ranks in the top 20 chemicals for production volume. Smaller amounts of benzene are used to make some types of lubricants, explosives, and napalm. In addition to xylene, several benzene derivatives are in products we use every day:
WTI Crude Oil
$42.92 ▼-0.21   -0.49%
2016.07.26 end-of-day


Generally speaking 40 to 45 API gravity degree oils have the greatest commercial value because they are rich in gasoline. Condensates are worth slightly less because the natural gasoline has a lower octane value. Heavier crudes are worth less because they require more refinery processing. West Texas Intermediate (WTI) is the benchmark crude oil used by the United States to set prices and compare other oils. It has 38 to 40 API gravity.​

Crude Oil Quality

API (American Petroleum Institute) Gravity - Most commercial descriptions of the types of oil center around its density, e.g., light crude, heavy crude, etc. API Gravity, the American Petroleum Institute's measure of oil density is the industries most used standard.

The U.S. National Bureau of Standards established the Baumé scale (degrees Baumé) as the standard for measuring specific gravity, or density of liquids less dense than water. API gravity, is a measure of how heavy or light a petroleum liquid is compared to water.

The formula for calculating API gravity is: API Gravity = (141.50/Specific Gravity) - 131.50

Crude Oil Basics

Crude oil and natural gas are called hydrocarbons because both are composed of carbon and hydrogen atoms. Natural gas molecules are generally shorter; four carbon atoms or less. Crude oil molecules contain five or more carbon atoms per molecule.

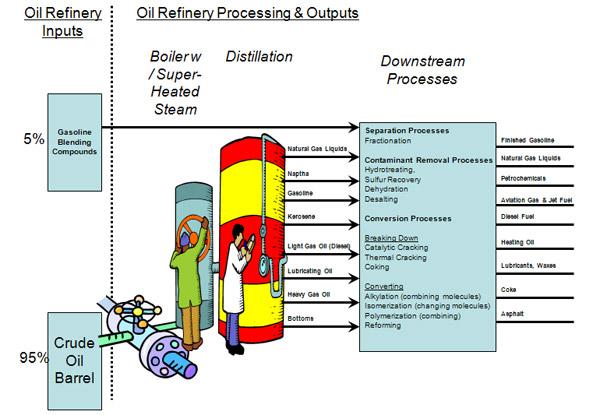

Crude Oil Refining

Crude oil is described as "crude" for a simple reason: It contains dozens of different hydrocarbon compounds. An oil refinery, in simplest terms does three things:

  1. Separate the dozens of compounds within the crude oil into individual chemical units.
  2. Remove contaminants.
  3. Convert or transform these individual chemical units into as much gasoline as possible.
